Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-320
Payment & Shipping Terms
Minimum Order Quantity: 10 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Item Type: |
Flip Chip COB Led Strip |
Viewing Angle(°): |
180 |
Operating Temperature(℃): |
-20 - +50 |
Color Rendering Index(ra): |
80,90 |
Certification: |
RoHS,LM-80 Energy Star |
Size: |
8*10000mm |
Item Type: |
Flip Chip COB Led Strip |
Viewing Angle(°): |
180 |
Operating Temperature(℃): |
-20 - +50 |
Color Rendering Index(ra): |
80,90 |
Certification: |
RoHS,LM-80 Energy Star |
Size: |
8*10000mm |
320 Leds/M Fcob Led Strip Double Sided Fpcb 24v 10meters/Reel
Product introduction
LED Chip Quantity:320 Chips/meter
Input Voltage: 24V ;
Width: 8MM ;
Material: Silicon, FPC,LED flip chips and 15cm input wire ;
Power: 10W/Meter (base on 1 meter testing)
IP Range: IP20 For indoor using;
Cutting Length: 320 Chips/meter 24Vdc - every 50mm ;
Color Temperature(CCT): 2000K 2700K 3000K 4000K 5000K 6500K (6 different CCT);
Operation temperature: -20℃-+45℃ ;
Storage temperature: -20℃-+60℃ ;
View angle: 180°
Datasheet
| Part number |
WES-FCOB-320 |
WES-FCOB-384 | WES-FCOB-480 | WES-FCOB-504 | WES-FCOB-528 |
| LED Quantity |
320 pcs/meter |
384 pcs/meter | 480 pcs/meter | 504 pcs/meter | 528 pcs/meter |
| PCB width |
6mm/8mm/10mm |
8mm | 8mm/10mm | 10mm | 10mm |
| Color temperature (CCT) |
2700K 3000K |
2700K 3000K 4000K 6000K |
2700K 3000K |
2700K 3000K 4000K 6000K | 2700K 3000K 4000K 6000K |
| RA |
90 |
90 | 90 | 90 | 90 |
| Wattage |
6mm 12V(6W) 24V(8W) |
10W |
8mm 12V(8W) 24V(10W) |
12V(12W) |
14W |
| Cutable Length | 50mm |
41.66mm |
50mm | 50mm | 45.45mm |
| IP Rate |
IP20/IP65/IP67 |
IP20/IP65/IP67 | IP20/IP65/IP67 | IP20/IP65/IP67 | IP20/IP65/IP67 |
Advantages
1. USe low voltage curcuit, saftey DC12V/DC24V power, safe to use
2. Adopt Brand Led Chip, high Brightness, Low Light Decay.
3. Beam Angle 180°. High Color Efficiency, Uniform Illumination.
4. Color: 2700k, 3000k, 4000k, 6000k , Red, Green, Blue, Yellow, and OEM colors
5. All of Materials Are Accord With Rohs Standards.
6. Easy to Install and Preserve; With 3m Adhesive Tape On the Backside.
7. Cuttable at every cutlines, you can make your own design DIY lights
Application
Suitable for interior decoration. Such as kitchen, cabinet, bedroom, stair, mirror, corridor, DIY backlight, table lamp, toy light, DIY lighting, special use and other lighting.Come with double-side tape (IP20 non-waterproof Indoor Use Only). Work with Controller or Power supply directly.

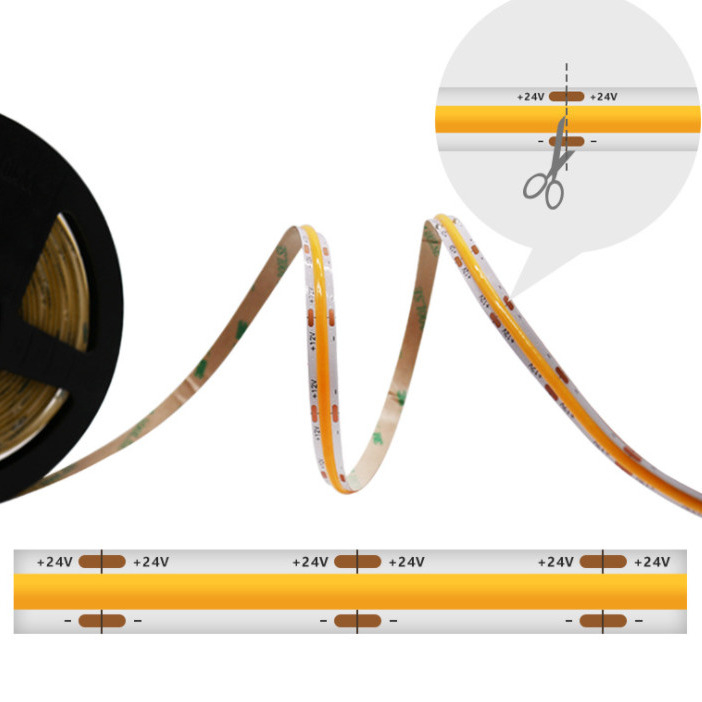

Product Photo
