Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-5050RGB LED
Payment & Shipping Terms
Packaging Details: 1000 pcs/reel, antistactics bag
Delivery Time: 8~10 work days
Payment Terms: L/C, T/T
Supply Ability: 10,000,000 pcs per month
Led Light Source: |
Epistar SMD5050 Led |
Usage: |
Decorative Lighting |
IC: |
P923F Built In IC |
Lumens: |
22~26LM |
Certificate: |
LM-80 |
Lifespan: |
50000hours |
Led Light Source: |
Epistar SMD5050 Led |
Usage: |
Decorative Lighting |
IC: |
P923F Built In IC |
Lumens: |
22~26LM |
Certificate: |
LM-80 |
Lifespan: |
50000hours |

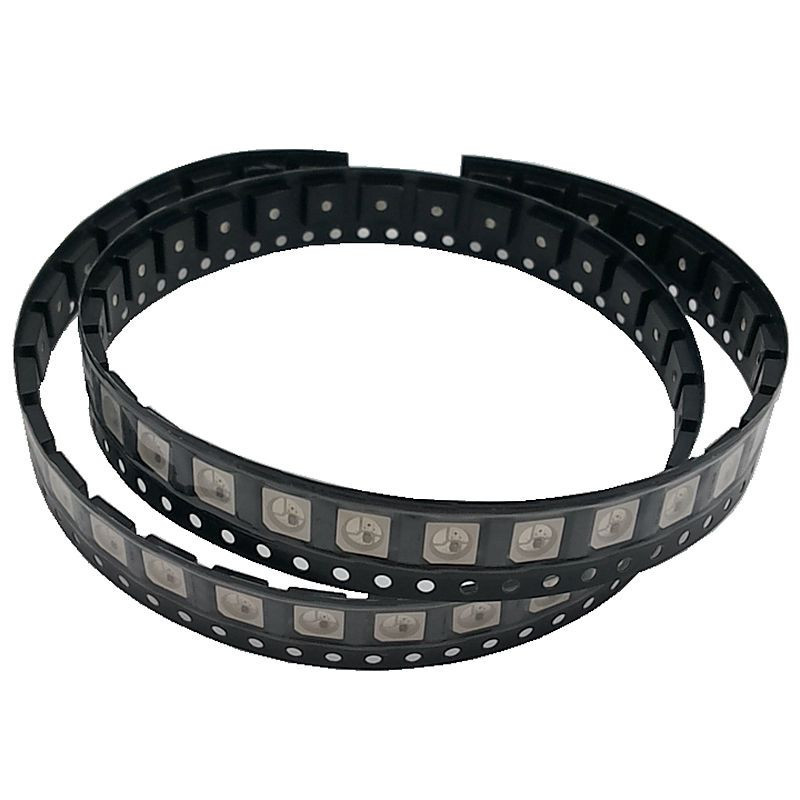

4-Pin Board WS2812B Rgb Full Color SMD Led chip With Heatsink
IC Introduction
WS2812B is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. effectively ensuring the pixel point light color height consistent.
The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel,the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.
LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
| Items No. | Emitting Color | Wave Length /CCT | Luminous Intensity | Forward Voltage | Forward Current | Viewing Angle |
| P923 -5050 4 PIN | Red | 625 ±5 nm | 250-900MCD | 1.7-2.1V | 12mA | 120° |
| Blue | 470 ±5 nm | 200-450MCD | 2.7-3V | 12mA | ||
| Green | 525 ±5 nm | 800-1600MCD | 2.7-3V | 12mA | ||
| Mix White | 8000-20000K | 1800-3500MCD | 7-9V | 40mA |
Advantage
LED has the advantages of low voltage drive, environmental protection and energy saving, high brightness, large scattering Angle, good consistency, ultra-low power, ultra-long life and so on.The control circuit is integrated on the LED, making the circuit more simple, smaller and easier to install.
Application
◆ LED full color light string, LED full color module, LED full color flexible/rigid strips, LED guardrail tube.
◆ LED pixel light source, LED pixel screen, LED special screen, various electronic products, electrical equipment light.
