Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-576
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiate
Packaging Details: 5 meters/reel, antistactics bag, 500 meters/carton, carton size: 500*220*260mm
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Product: |
COB CCT Dimmable Led Strip |
Input Voltage: |
24V |
Color Temperature: |
2700K+4000K+6000K |
PCB Width: |
10mm |
Support Dimmer: |
Yes |
Warranty: |
3 Years Warranty |
Product: |
COB CCT Dimmable Led Strip |
Input Voltage: |
24V |
Color Temperature: |
2700K+4000K+6000K |
PCB Width: |
10mm |
Support Dimmer: |
Yes |
Warranty: |
3 Years Warranty |

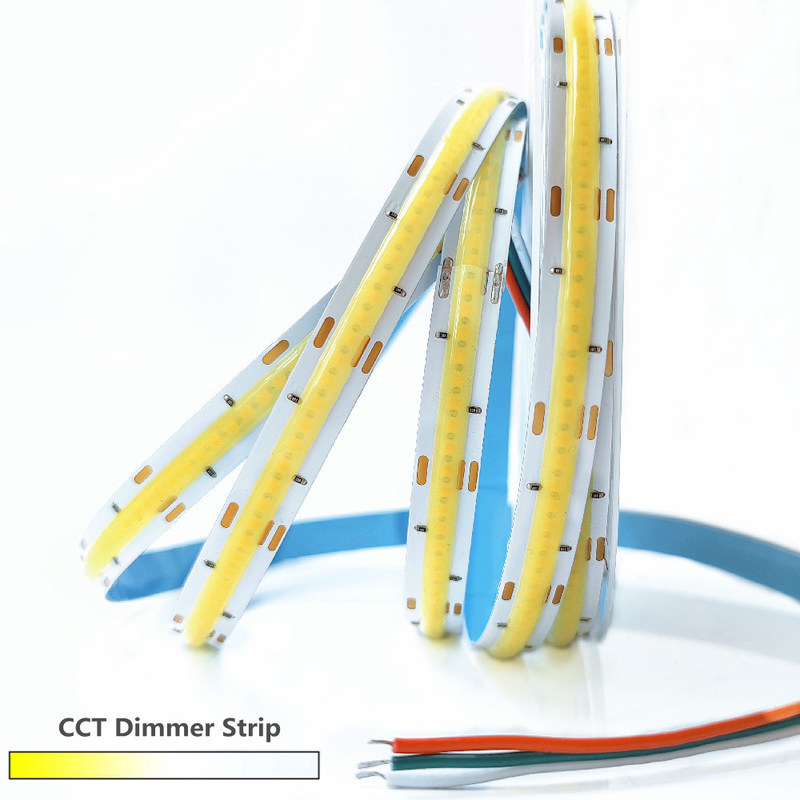

Three-color dimmable 3000K+4000K+6000K COB led strip light DC24V
Product details for Dimmable COB led strip
Flexible COB LED Strip Light is a new design type of led strip products.
As the led strip is by SMD LED+ FPC, so there must with some light dot or spot.
Now this COB strip is take the flip chip technical to bonding the chip directly on the FFR board and then cover it by phosphor & silicone gel directly, so the color is even and without any light dot or light spot, 180 degree big view angle.
Available in DC12V/DC24V, 2700+4000K+6500K cct dimmable, can meet your needs for Room TV backlight decoration.
| Part number |
WES-FCOB-576 |
| LED Quantity |
576 pcs/meter |
| PCB width |
10mm |
| Color temperature (CCT) |
2700K+6500K |
| RA |
>80, >90 |
| Wattage |
10W~20W |
|
Cutable Length |
12V(31.25mm) 24V(27.78mm) |
| IP Rate |
IP20/IP65 |
Advantages for Dimmable COB led strip
1. This product conforms to the LM80 LED standard, is designed for constant voltage work, uses flip chip, and COB integration process;
2. IP20 grade, suitable for indoor lighting effect rendering, commercial or home ;
3. It can be cut and used, but needs to be re-wired; the back contains 3M double-sided tape, which can be pasted in any fireproof material or aluminum tank for use, design lighting!;
4. The technical principle of this series of products: the blue flip chip excites a variety of different colors of light through a variety of yellow phosphors.
Application
Suitable for interior decoration. Such as kitchen, cabinet, bedroom, stair, mirror, corridor, DIY backlight, table lamp, toy light, DIY lighting, special use and other lighting.Come with double-side tape (IP20 non-waterproof Indoor Use Only). Work with Controller or Power supply directly.
