Product Details
Place of Origin: Guangdong, China
Brand Name: WEERSOM
Certification: CE, ROHS
Model Number: WES-FCOB-630
Payment & Shipping Terms
Minimum Order Quantity: 5 meters
Price: Negotiable
Packaging Details: 5 meters/reel, Antistactics bag
Delivery Time: 8~10 work days
Payment Terms: T/T, L/C
Supply Ability: 800,000 meters per month
Item: |
COB LED Strip |
Power: |
15W |
Emitting Color: |
RGB |
Ip Rating: |
IP67 |
Working Lifetime(hour): |
50000 |
Input Voltage(v): |
DC12V/24V |
Item: |
COB LED Strip |
Power: |
15W |
Emitting Color: |
RGB |
Ip Rating: |
IP67 |
Working Lifetime(hour): |
50000 |
Input Voltage(v): |
DC12V/24V |

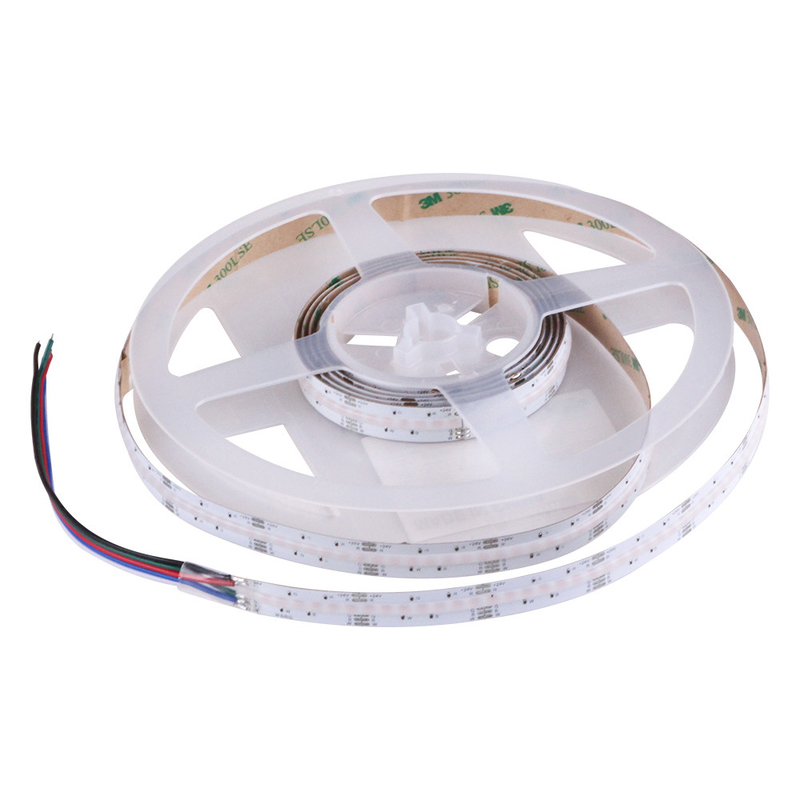

Waterproof IP67 5m RGB COB LED Strip Roll 630 Leds Per Meter
Rgb Cob Led Strip 630 Leds Per Meter Waterproof 5m Roll
Product Introduction for RGB COB LED strip
1. Flexible COB led strip is a new design type of LED strip products. As the led strip is by SMD LED+ FPC, so there's some light dot or spot. Now this COB strip is take Flip chip technology, to bond the chip directly on the FPC board, and then cover up with phosphor & silicone gel directly.
2. We apply double layers FPC, the material of FPC is pure copper, so even we use high density leds on the FPC, it still can help to release the heat, and extend the life span of the product. The LED life span> 50, 000 hours. The color is even andsoft, without any light dot or light spot, 180 degree big view angle.
3. With 3M adhesive tape on the backside, which makes the COB led strip easy to install and preserve. All of materials are accord with RoHS and CE standards.
Parameters for pixel rgb cob led strip
|
Part number |
WES-FCOB-630 |
|
LED Quantity |
630 pcs/meter |
|
PCB width |
10mm |
|
Color |
RGB |
|
Luminous Flux |
2500~2800 mcd |
|
Wattage |
12V(15W) 24V(18W) |
|
Cutable Length |
12V(14.29mm) 24V(33.33mm) |
|
IP Rate |
IP20/IP65/IP67 |
Advantages:
1. 9*22mil big chips is used that could achieve 100LM/W high efficiency at CRI90.
2. Thick phosphor glue is used that improves the light quality to more than smooth and SDCM<3.
3. 2OZ thickness with solid copper is used that makes the strip light is with good heat dissipation and also low voltage dropping.
4. 3 years warranty is offered and could extended to 5 years as requested.
Application:
1. Ideal for decoration of building outlines, landscape illumination, amusement themes,
2. Holiday light sculpture, decorative figure, active signs, displays, shop windows
3. And storefronts, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railing, ceiling, or driveway.
